Tengu 4025HS / 750kV (Henseleit TDF)

Be the first to review this product

Hand-wound EGODRIFT Tengu 4025HS motor for with special 6x20mm full round shaft to fit the Henseleit TDF helicopter and a rating of 750kV for operation on 6S.
$259.00
SKU: 11838
In stock
Details

Hand-wound EGODRIFT Tengu 4025HS motor for with special 6x20mm full round shaft to fit the Henseleit TDF helicopter and a rating of 750kV for operation on 6S.

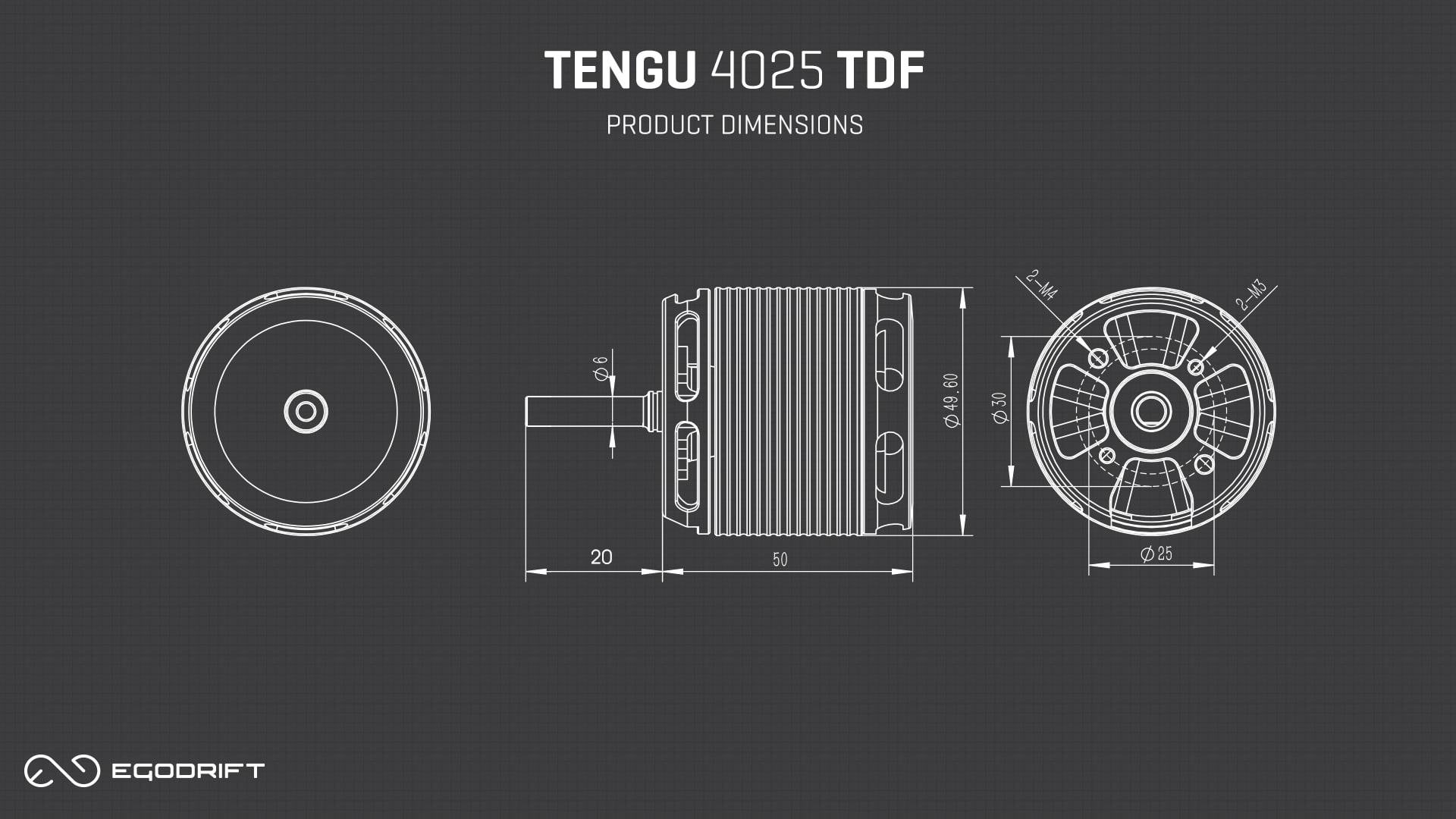

The motor's overall dimensions are 50 x 49.6mm (1.96x1.95 inch) with a total weight of 325 grams (11.464 oz).

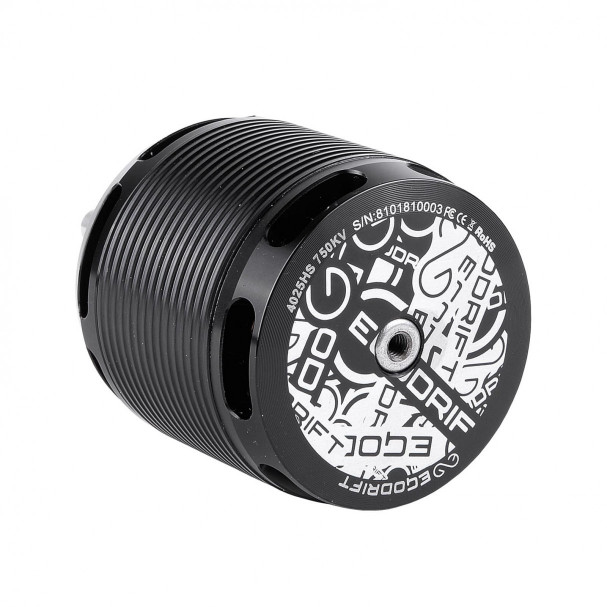

Like all models within the Tengu series, the top of the can features the iconic and heat-resistant EGODRIFT Stickerbomb design, to add the finishing touch to your heli build.

Each motor comes with mounting screws and an (optional) screw for additional securing of the bell.

Specifications
  • Manufacturer: EGODRIFT
  • Stator size: 4025
  • Motor configuration: 12N10P
  • Motor weight: 333g (11.464 oz)
  • Wire colour: Copper
  • Motor wire type: High temperature copper wire
  • Motor wire: 1.4mm
  • Motor kV: 750 kV
  • Motor shaft: Hardened Steel
  • Shaft diameter: 6.0 mm
  • External shaft length (mm): 20 mm Special (Henseleit)
  • Mounting hole pattern: 2xM4(30) + 2xM3(25)
  • Laser Design: EGODRIFT Stickerbomb
  • LiPo cells: 6S
  • Stator diameter: 40 mm
  • Stator height: 25 mm
  • Stator lamination: 0.15 mm (+)
  • Body Length: 50mm (1.97 inch)
  • Diameter: 49.6mm (1.95 inch)
  • Idle current: 4.7A
  • Maximum Current: 85A (Peak: 105A / 2 seconds)
  • Maximum Power: 2720W (Peak: 3110W / 2 seconds)
  • Internal resistance: 12.4 mOhm
  • Connection: Wire / Gold plated plugs
  • Designer: Yutao Zou

What's in the box

  • 1 x Tengu 4025HS / 750kV Henseleit TDF Motor
  • 3 x Gold Plated Connector, Male
  • 3 x Gold Plated Connector, Female
  • 4 x Mounting Screws
  • 1x Bell securing screw
