TENGU 4030EC ECLIPSE

Next-generation EGODRIFT Tengu 4030EC Eclipse motor for 550-5600 size helicopters, featuring—and completely redesigned around—our new 40mm custom stator.

Available Kv Ratings

• 560Kv – Tuned for 12S setups
• 800Kv – "Epic Combo 2.0" on 8S
• 1050Kv & 1150Kv – Ideal choices for 6S configurations

Technical Highlights

• Custom EGODRIFT stator
• Tailored arc magnets for optimal power delivery
• 6mm shaft for further weight reduction

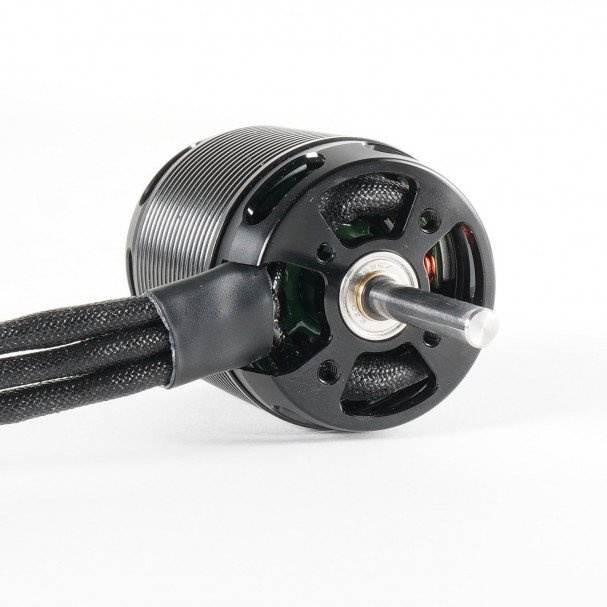

• Base with 2×M4(30)+2xM3(25) mounting holes

Experience the next step in high-performance brushless power with the EGODRIFT Tengu 4030EC Eclipse Series — a thoroughly redesigned motor that outperforms the Beta generation in every way.

Introducing the EGODRIFT Tengu 4025EC & 4030EC (Eclipse) Motors

At first glance, the new 4025EC and 4030EC might appear similar to their Beta predecessors. However, these motors have been completely re-engineered around our new, custom 40mm EGODRIFT stator—an evolution that boosts power output, increases efficiency, and runs cooler than ever.

To fully realize the Eclipse stator’s potential, we treated the entire motor to a series of upgrades: specially designed arc magnets, tailored to the curvature of the stator arms, ensure smooth and seamless power delivery, while an updated bell with adjusted magnet seats and deepened cooling grooves yields greater cooling capability. Plus, a new 6mm internal-diameter shaft further reduces weight. The result is a series of motors that look familiar on the outside but are entirely next-generation under the hood.
