Tengu 4530HT / 620kV Speed

Be the first to review this product

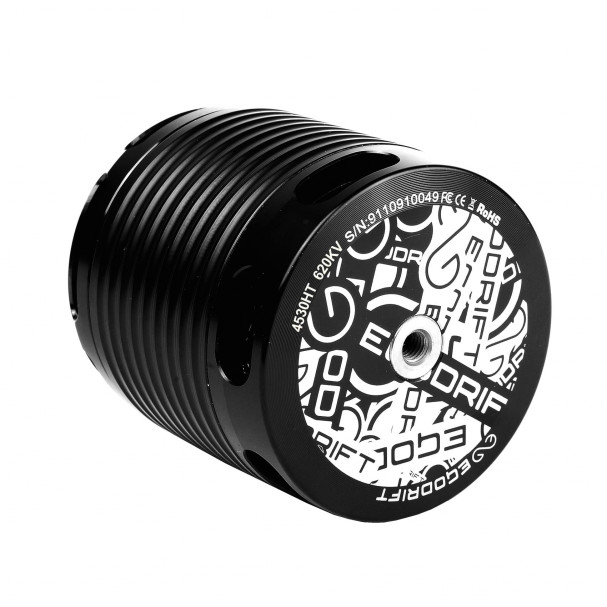

Hand-wound EGODRIFT Tengu 4530 HT (High Torque) Series 620kV brushless motor for 700 class speed racing helicopters, such as the Gaui R5 and others.
$399.99
SKU: tengu-4530ht-620
In stock

* Required Fields

$399.99
Details

EGODRIFT Tengu high-performance brushless motor for RC Heli are the result of one year of development and testing. The 4530HT Tengu for speed racing comes with a kV rating of 620kV and fits the Gaui R5 and similar models.

All CNC parts are processed in our EGODRIFT factory on our Japanese Tsugami precision CNC machines for the utmost in precision and quality. We apply the same high standards to all other components used in the making of this motor, so it features EZO bearings, a custom made stator and special high temperature copper wire.

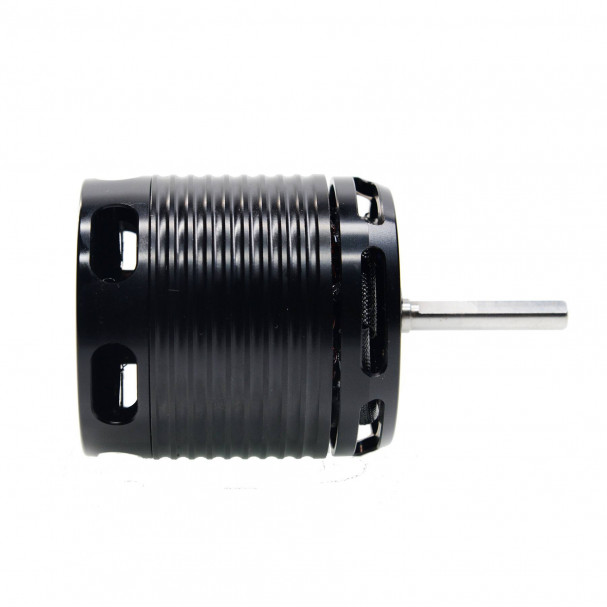

External length of the shaft: 35mm or 55mm (please choose)

EGODRIFT Tengu 4530 HS/HT Product Dimensions
Specifications
  • Manufacturer: EGODRIFT
  • Stator size: 4530
  • Motor configuration: 12N10P
  • Motor weight: TBA
  • Wire colour: Copper
  • Motor wire type: High temperature copper wire
  • Motor kV: 620 kV
  • Motor shaft: Hardened Steel
  • Mounting hole pattern: 4xM4(30)
  • Laser Design: EGODRIFT Stickerbomb
  • LiPo cells: 12S, 14S
  • Stator diameter: 45 mm
  • Stator height: 30 mm
  • Stator lamination: 0.15 mm (+)
  • Body Length: 60.58mm (2.39 inch)
  • Diameter: 56.40 mm (2.22 inch)
  • Idle current: TBA
  • Maximum Current: TBA
  • Maximum Power: TBA
  • Internal resistance: 12 mOhm
  • Connection: Wire / Gold plated plugs
  • Designer: Yutao Zou

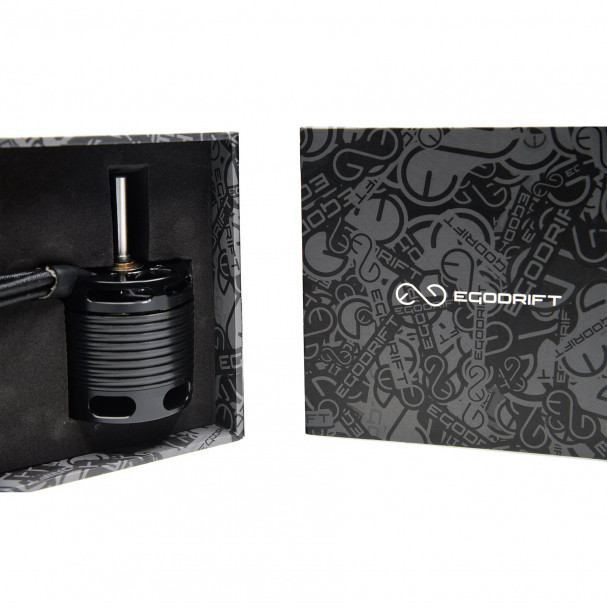

What's in the box

  • 1x Tengu 4530 HT Series/620kV Speed motor
  • 35mm or 55mm exterior length shaft (please choose)
  • 3 x Gold plated connectors, Male
  • 3 x Gold plated connectors, Female
  • 4 x Mounting screws
  • 1 x Bell securing screw
User Images

Upload your own photo(s) of this product to show your skills and earn extra Bonus Points!

See More

Recommended ESC & Motor Settings

The following settings have been tested and recommended for Hobbywing ESCS and the Tengu 4530HT motor by EGODRIFT team pilot Kenny Ko: (XLPower Specter 700 with 550kV version)

EGODRIFT Tengu 4530HT/550k Recommended ESC Settings - Flight Mode EGODRIFT Tengu 4530HT/550k Recommended ESC Settings - LiPo cells EGODRIFT Tengu 4530HT/550k Recommended ESC Settings - Cutoff Type EGODRIFT Tengu 4530HT/550k Recommended ESC Settings - Cutoff Voltage EGODRIFT Tengu 4530HT/550k Recommended ESC Settings - BEC Voltage EGODRIFT Tengu 4530HT/550k Recommended ESC Settings - Start-up Time EGODRIFT Tengu 4530HT/550k Recommended ESC Settings - Gov Param P EGODRIFT Tengu 4530HT/550k Recommended ESC Settings - Gov Param I EGODRIFT Tengu 4530HT/550k Recommended ESC Settings - AR Time EGODRIFT Tengu 4530HT/550k Recommended ESC Settings - Restart Accel EGODRIFT Tengu 4530HT/550k Recommended ESC Settings - Brake Type EGODRIFT Tengu 4530HT/550k Recommended ESC Settings - Brake Force EGODRIFT Tengu 4530HT/550k Recommended ESC Settings - Timing EGODRIFT Tengu 4530HT/550k Recommended ESC Settings - Motor Rotate EGODRIFT Tengu 4530HT/550k Recommended ESC Settings - Active FW EGODRIFT Tengu 4530HT/550k Recommended ESC Settings - Startup Power VBar Control Settings Kenny Ko - Vbar Control 1 VBar Control Settings Kenny Ko - VBar Control 2
